Accessories

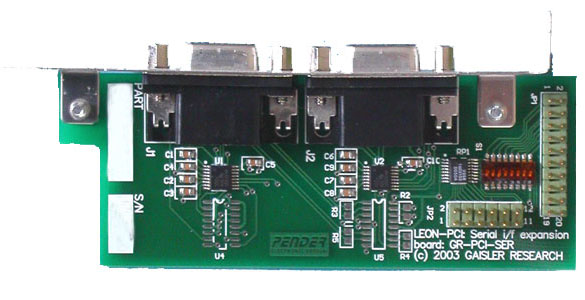

 Features: Accessory board for GR-PCI-XC2V connecting to the PIO expansion connector and providing two serial interfaces (2 x 4 signals). The serial interfaces can either be 2 x RS232, 2 x RS422 or 2 x LVDS interfaces  [User Manual]

- Part Number & Price
GR-PCI-RS232 : $400
GR-PCI-RS422 : $400
GR-PCI-LVDS  : $400

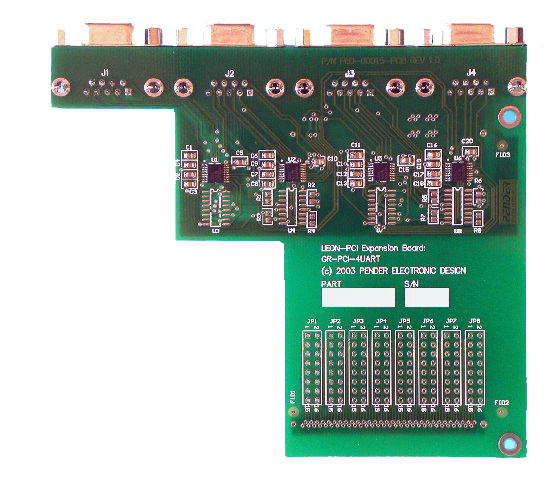

 Features: Mezzanine board for GR-PCI-XC2V connecting to the General IO expansion connector and providing four UART interfaces (can be specified as either RS232, RS422, LVDS, or combination thereof). Modifications required to Leon entities are described in the User Manual

- Part Number & Price
GR-PCI-4UART: $500

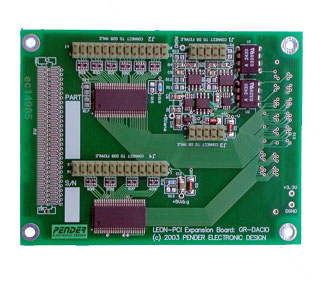

 Features: Mezzanine board for GR-PCI-XC2V connecting to the General IO expansion connector providing additional digital I/O signals (24 inputs and 16 programmable input/outputs) and two 16 bit DAC channels for general purpose control of peripherals by the GR-PCI LEON development board. Modifications required to Leon entities are described in the User Manual

- Part Number & Price
GR-PCI-DACIO: $550

Features: Accessory board for Compact PCI format board. Same as GR-PCI-RS232, but with compact PCI front plate for installation in a Compact PCI rack, adjacent to GR-CPCI board (in a slot position without rails) .
[ User Manual]

- Part Number & Price
GR-CPCI-RS232 : $400
GR-CPCI-RS422 : $400
GR-CPCI-LVDS  : $400

Features: Adapter board allowing a 32/64bit 3U format Compact PCI card to be installed in a 'classic' PCI slot.

[ User Manual ]

- Part Number & Price
GR-CPCI-PCI : $600

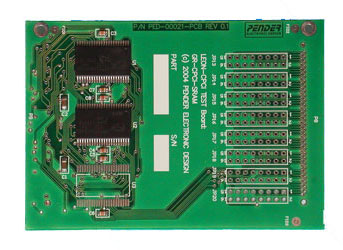

Features: Mezzanine board for GR-CPCI board, providing 1Mbyte SRAM. This allows SRAM to be used in addition to, or instead of SDRAM

- Part Number & Price
GR-CPCI-SRAM: $300

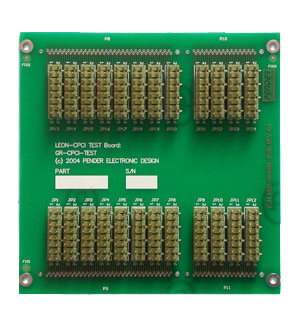

Features: Mezzanine board for GR-CPCI board, connecting to user expansion connectors. This provides standard 0.1" header connectors for easy hook-up to the general purpose I/O signals or for logic analyser/test connections

- Part Number & Price
GR-CPCI-TEST: $300
