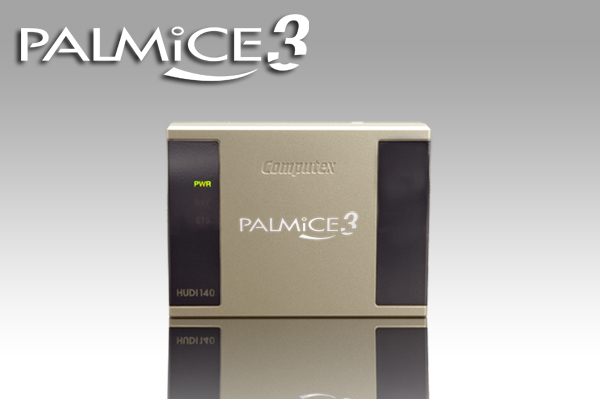

PALMiCE3 ARM is a JTAG emulator
that supports a range of ARM cores including ARM7/9/11 and
Cortex. It supports USB2.0 (High-speed) as the host
interface.the debugger also supports Vbus which requires no
power supply. Palm size of the PALMiCE3 has a palm-along with
ligh weight and compact body provide excellent portability
. Connection to the target system is through a 20-pin MIL
connector cable.
Supporting the CoreSight technology, PALMiCE3 ARM allows SWD
(Serial Wire Debug) interface connection by 2 signal lines.
Furthermore, it supports SWV (Serial Wire Viewer) by 1 signal
line. Besides being capable of variable and exception
information referencing without break during execution, with
time stamp feature, it can measure relative time between
information, which will allow further improvement in debugging
efficiency. As for the debugger, it surely incorporates CSIDE,
which provides a user-friendly debugging environment. CSIDE
supports not only high-level language debugging of a range of C
languages but also fully prepared for the debugging of a range
of RTOSs with optional debug libraries. |
|
Supported CPU cores |
ARM7Core(ARM7TDMI, ARM7TDMI-S, ARM720T,
ARM7TDMI(Rev4), ARM720T(Rev4))
ARM9Core（ARM920T, ARM946E-S, ARM966E-S, ARM922T, ARM925T,
ARM926EJ-S）
ARM11Core(ARM1136J(F)-S,ARM1156T2(F)-S,ARM1176JZ(F)-S,ARM11
MPCore)
CortexCore（Cortex-A8,Cortex-A9,Cortex-A9 MPCore,Cortex-M3）
FA526*1,FA626TE*1 |
|
Target
I/F |
Voltage |
1.0V-5.5V（follows
target） |
|
Current consumption |
50μA
or lower |
|
Voltage measurement |
Measures by sampling and shows the results with accuracy of 50mV
and precision showing 2 decimal places. |
|
Connector |
20-pin MILL Connector (20Cm) |
|
JTAG clock |
Can be set freely within a range between 1KHz and 40MHz.
Supports automatic adaptation with RTCK. |
|
Operation mode |
ARM/Thumb mode support, Sleep mode support（Only
when RTCK is used.） |
|
Register, memory operation |
Supports referencing/editing of register and memory and
downloading to memory during break. |
|
Flash memory support |
In addition to downloading to a range of flash memories, it also
supports debugging features such as software break settings and
ordinary memory rewriting feature. Also, new device can be added
easily with definition file format. |
|
Software break feature |
256 points |
|
CPU break feature |
ARM7/9 |
2points. Note that 1 point only can be specified when software
breakpoints are set
（Only
ARM926EJ-S accepts 2 points）.
|
|
ARM11 |
8 points (Instruction
matching break: 6points; Data matching break: 2 points） |
|
ETM features |
ETM break, etc. |
2points
（address,
data, CPU status
（Fetch/Read/Write/Read
and Write) can
be specified. For address and data, options can be specified by
range.）,
external forced break: 1 point, trace end break, etc..
|
|
|
Data mode |
Large/Medium/Small mode support, 4/8/16-bit port support
|
|
Tracing frequency |
150MHz(max) |
200MHz(max) |
|
Tracing cycle |
256K cycle (32-bit time stamp (50ns/1μs))
|
|
Traced contents display |
Shows: Branching destination, supplementation between branches,
data access, and functions. |
|
Trace capturing
mode |
Normal/Multiplex/half-rate/
Demultiplex (single connector)
|
Normal/multiplex/half-rate/
Demultiplex
（single/dual
connector） |
|
Triggering mode |
Free/Before or After trigger/Area support/Stop/Break mode
support |
|
Other |
Simplified profiler capability, interval measuring feature, etc. Supported
in ARM7 and 9） |
|
Execution time measurement |
Measures execution time of the user program (64-bit counter,
measurement unit=1μS)
|
|
Debugger included as standard |
CSIDE for PALMiCE2 ARM |
|
|
|
General specifications |
Extended I/F |
Computex original I/F |
|
Power consumption |
DC+5V 500mA |
DC+5V 700mA |
DC+5V 330mA(Vbus support) |
|
Dedicated AC
adapter |
Input：AC100V-240V,
Output：5V,
2A |
―――― |
|
Outside dimensions |
106mm (W)
×78mm
(D)
×29.5mm
(H) |
|
Host I/F |
USB mini-B (5-pinned) connector |
|
Supported host PC |
DOS/V compatibles (Windows98SE/2000/Me/XP/Vista) equipped
with USB2.0 (1.1 is also supported) interface |
Supported Languages, RTOS, & Linux
|
Supported C compiler |
ARM ADS/RVCT, TI C, GNU C, GreenHills C, EW, XCC-V
|
|
Supported RTOS
（Optional） |
Supports NORTi, NucleusμiPLUS,
and OSE with dedicated debug libraries. |
|
Supported embedded
Linux
(Optional） |
MontaVista Linux
Supports loadable-module and application debugging with
dedicated debug libraries. Features such as application
memory profiler capability
（Memory
leak detection）,
SIGSEGV detection, process tracing, process information
display, target file system referencing and editing（Read/Write
access enabled directory）,
shared library debugging, and execution and break by process
can be used. As for ETM model, it even allows ETM tracing
with process recognized.
|
Ordering
Information:
|
Base Set |
Remarks |
Price |
|
PALMiCE2-ARM-E(JTAG200) |
ARM JTAG200 model |
|
|
PALMiCE2-ARM-E(ETM380) |
ARM ETM380 model |
|
|
PALMiCE2-ARM-E(ETM381) |
ARM ETM381 model |
|
|
Adapter (Optional)
|
Remarks |
Price |
|
ADP-20P-14P |
Adapter for conversion from 20Pin to 14Pin
|
$100 |
|
ADP-ETM-JTAG14 |
Adapter for conversion from 38Pin to 14Pin
|
$100 |
|
ADP-ETM-JTAG20 |
Adapter for conversion from 38Pin to 20Pin
|
$100 |
|
ADP-JTAG20-ETM |
Adapter for conversion from 20Pin to 38Pin
|
$100 |
| |
|
High-speed Download Probe
(Optional) |
Remarks |
Price |
|
P2-DWNLD-PRB-E |
High-speed download probe 8-bit edition.
Supports high-speed (3MB/S maximum)
downloading to the target memory with the
dedicated probe. |
$1,000 |
|
P2-DWNLD16-PRB-E |
High-speed download probe 16-bit edition.
Supports high-speed (10MB/S maximum)
downloading to the target memory with the
dedicated probe. |
$1,500 |
|
RTOS Debug Library (Optional)
|
Remarks |
Price |
|
NORTi-DBGLIB-ARM/P2-E |
For
details on supported languages, supported
versions of supported RTOSs, please contact
us. |
$500 |
|
Nucleus-DBGLIB-ARM/P2-E
|
For details on supported languages,
supported versions of supported RTOSs,
please contact us. |
$500
|
|
OSE-DBGLIB-ARM/P2-E |
For details on supported languages,
supported versions of supported RTOSs,
please contact us. |
$500
|
|
Linux Debug Library
(Optional) |
Remarks |
Price |
|
Linux-APDLIB-ARM/P2-E |
For details on supported languages,
supported versions of supported Linux,
please contact us. |
$1,500
|
|
|
|
|
