The Spartan-3E development platform enables efficient design and validation of leading-edge display applications such as flat panel TV monitors and displays, rear projection TVs, and digital projectors. Critical display features such as integrated microcontrollers, embedded MicroBlaze™ 32-bit processors, RSDS interfacing, parallel digital signal processing, on-chip memory and high-speed external memory access can be incorporated on a single XC3S1600E Spartan-3E device.
The Spartan-3E Display Solutions Board offers standard connections to display panels and video/tuner boards to verify connectivity solutions and image enhancement algorithms.
Features:
FPGA ： Xilinx XC3S1600E-4FG484C
Configuration PROM ： XCF08PVO48
Memory Chip: 4 x Elpida DDR Memory EDD5116ADTA(512Mbit x16) chips
General Purpose SPI Memory ： ST Micro SPI Memory M25P16-VMF6P
External Clock : Programmable PLL, OSC Socket
Extended IO: JAE WR-100S-VF-1 x4 (User I/O: 84 x 4)

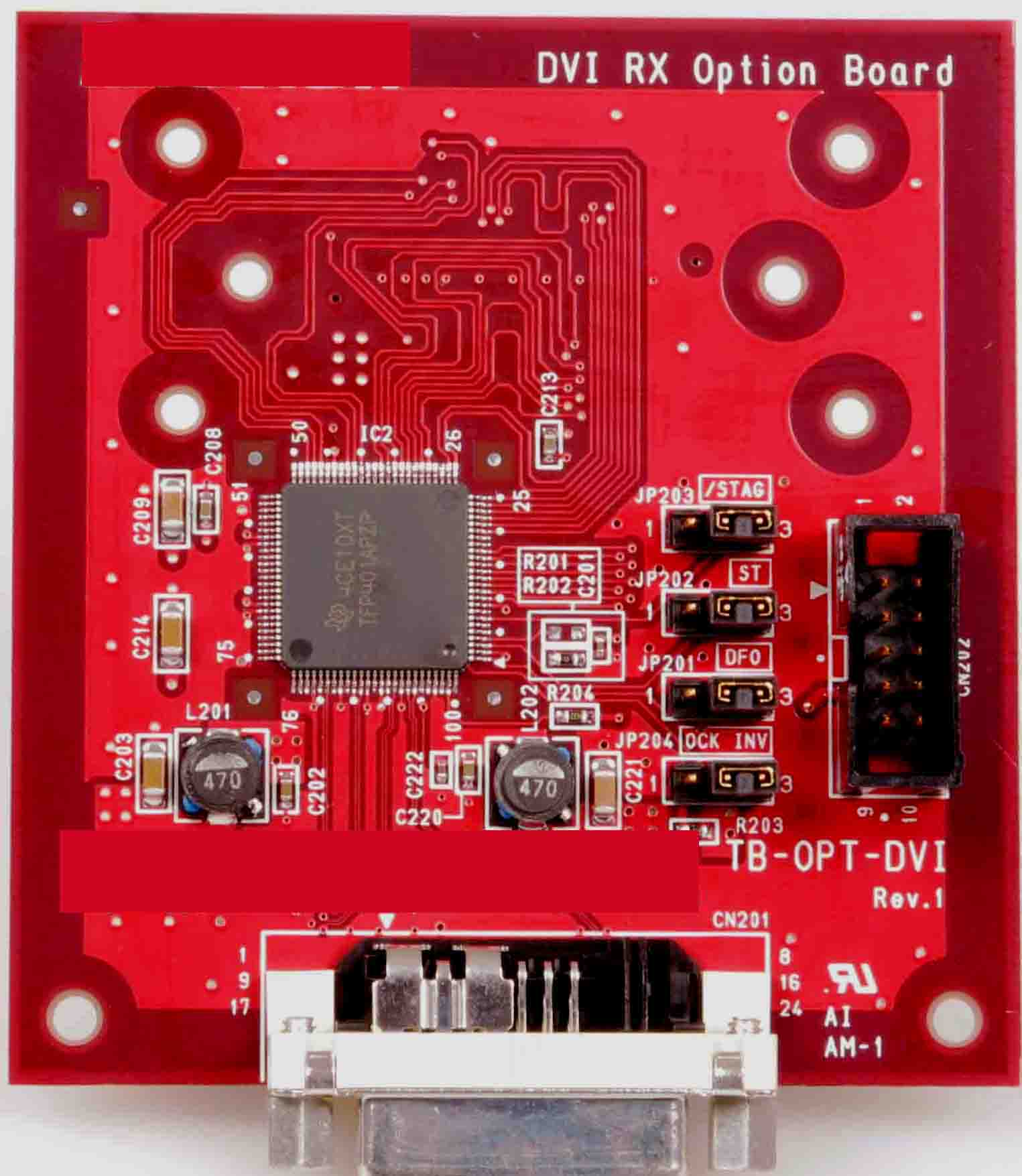

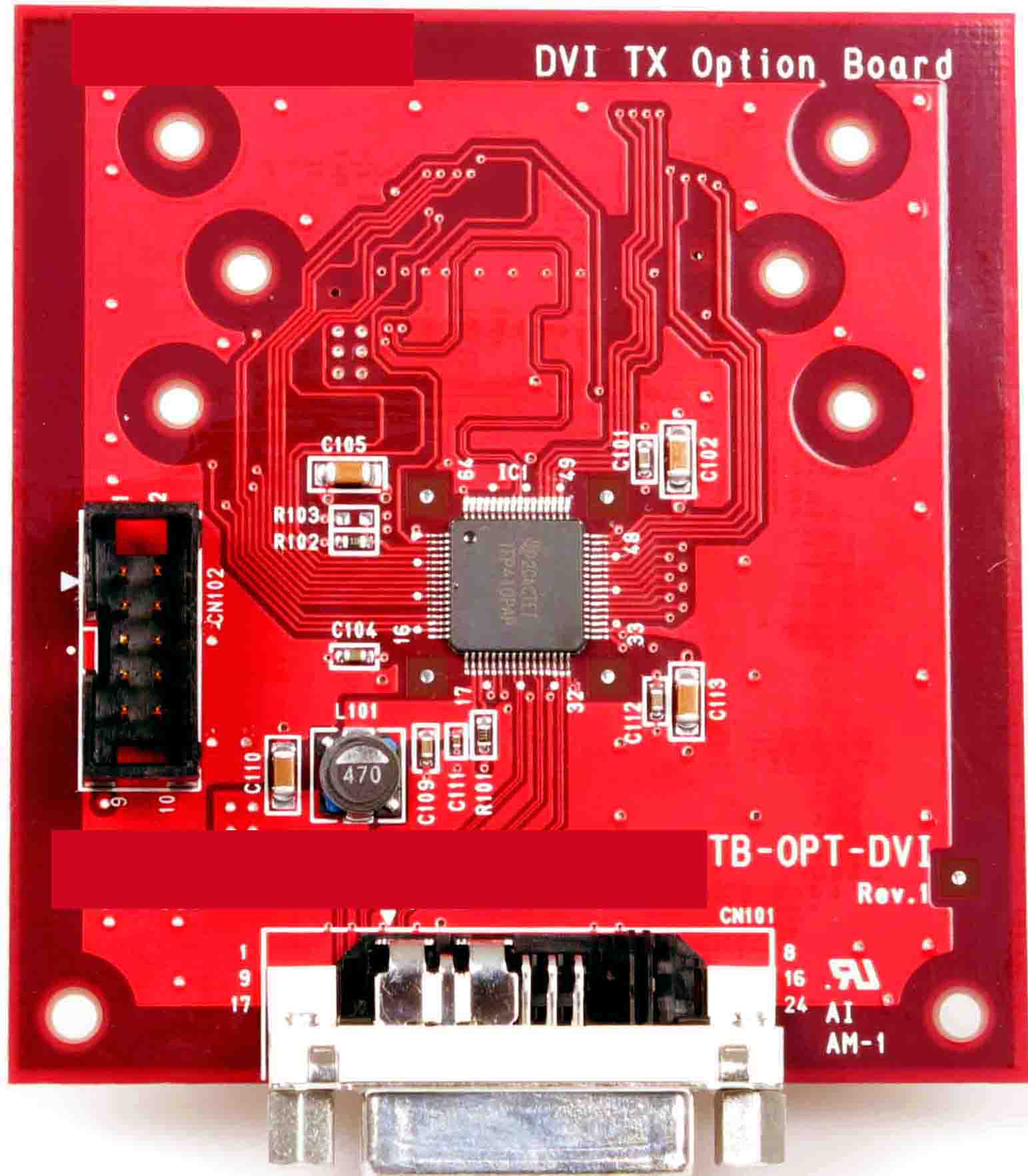

DVI Interface: DVI Tx/Rx Option Modules (up to UXGA)
High Speed Extension I/O ： 4 x 100-pin connector （I/O：42-pin）
Dimension ： 200mm x 230mm
Input Power Supply: 12V DC

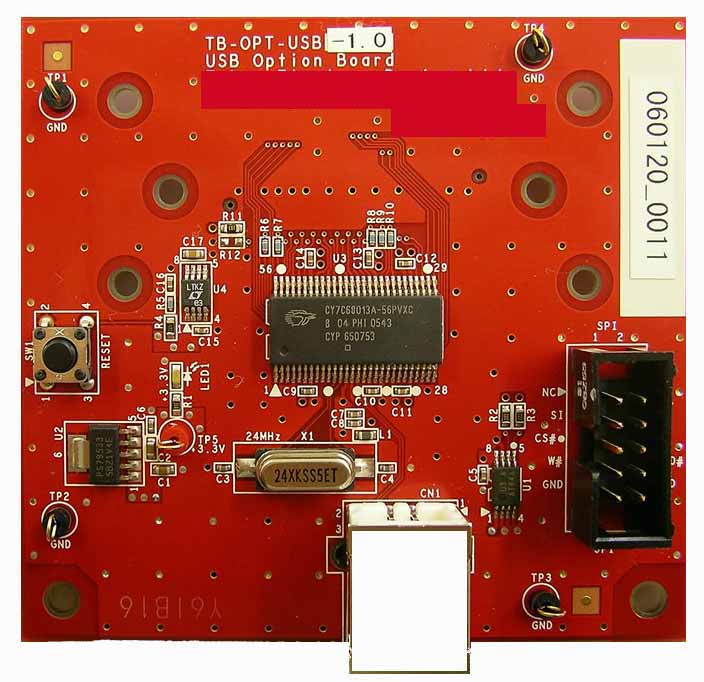

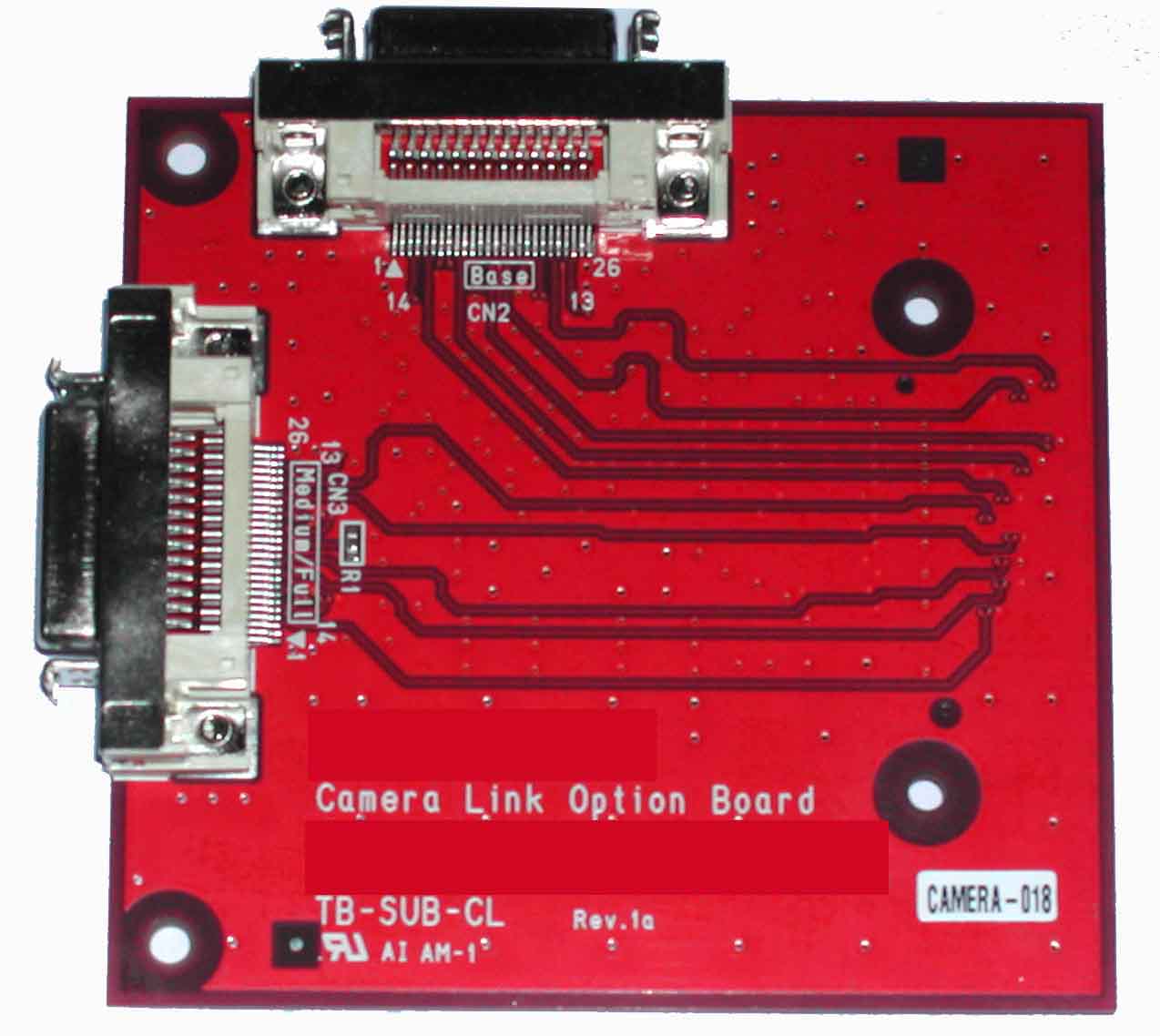

Optional Modules:
|
