Powered by Virtex®-5 LX50T FPGA and the new Platform Flash XL 128 Mb configuration storage device, this platform supports:

▪ x4 PCI Express® Gen 1
▪ DDR-3, (component)
▪ DDR-2 (SO-DIMM)
▪ Data-rate-adjustable RocketIO™ GTX transceivers (with SuperClock) ▪ Single-ended and LVDS connections
▪ Standalone capability

This board offers a flexible platform for serial I/O-based applications with an on-board super clock providing different reference clocks across eight RocketIO GTX transceivers.

Select FPGA IO banks on this board are powered by adjustable 2.5V or 3.3V power supply. This provides flexible access to either 50 pairs of LVDS (2.5V) or 100 single-ended (3.3V) IOs thorough two high-speed connectors.

The on-board 128 Mb Platform Flash XL allows multiboot, high-performance configuration, and extra space for data storage

► Features:

▪ Xilinx Virtex-5 XC5VLX50T
▪ 4-Lane PCI Express End-Point (upstream) Connector
▪ 8 line data-rate-adjustable RocketIO GTPs (with super clock)
▪ One Tri-Mode Ethernet Connector (10/100/1000)
▪ 1Gb Elpida DDR 3 memory
▪ One DDR2 SO-DIMM (up to 2GB) with one Elpida module (EBE52UD6AJUA-6E-E) - The board is shipped with a 512 MB SO-DIMM
▪ 128 Mb Flash Memory (for FPGA configuration and storage)
▪ Two Samtec High-speed Connectors for Single-Ended (3.3V/2.5V) and LVDS (2.5V) IOs (total of 50 LVDS pairs + 4 Clock pairs)
▪ GTP Super Clock
▪ User Super Clock
▪ Adjustable PCI Express Jitter Attenuator
▪ ATX and Standard 5 V Power Connectors
▪ Jumper for Stand Alone mode
▪ Jumpers for configuration via PCI Express bus
▪ x8 General Purpose IO headers
▪ System Monitor
▪ Size: 6.6" x 4.25" (pluggable to servers)

► Kit Content:
▪ Development Board
▪ CD ROM with reference designs (x4 PCI Express Gen.1 , DDR-3, & DDR-2), schematics, user manual, etc.

Optional Accessories:

RocketIO add-on module with x1 CX4, x16 SMAs (4 RocketIO ports), and IO headers Part Number: HTG-SMA-CX4-HDR Price: $395	Communication/storage add-on module with x1 SD interface,  x1 Debug port, x1USB 2.0 & 3.0 Host, x1 USB 2.0 & 3.0 Peripheral, x2 SFP, x1 SATA, and x8 SMA(2 RocketIO ports) Part Number: HTG-COM-MDL Price: $495		USB 3.0 (Host/Device), SFP, and SMA Part Number: HTG-USB3-MDL Price: $390

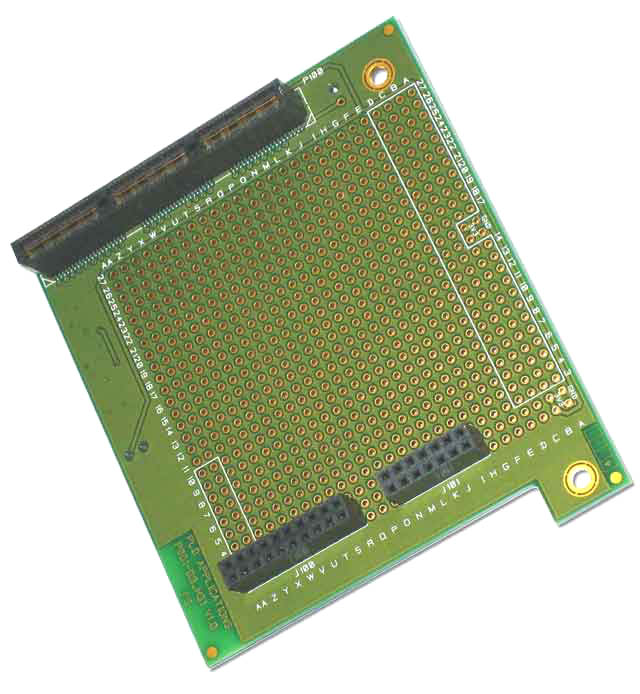

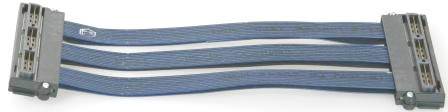

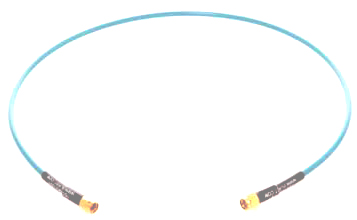

Part Number: BB-HSI Price: $390 The High Speed Interface bread board offers access to 100 signals from the SAMTEC connector .  600 holes (254mm step) are available for prototyping purposes	Board to board (or to module) connector (6") Part #: QSE-TO-QSE Price: $175 Cable Builder for the high-speed connectors		SMA to SMA Cable   (24 Inches) Part #: SMA-CBL2 Price: : $18
